Walkie Stacker Forklifts

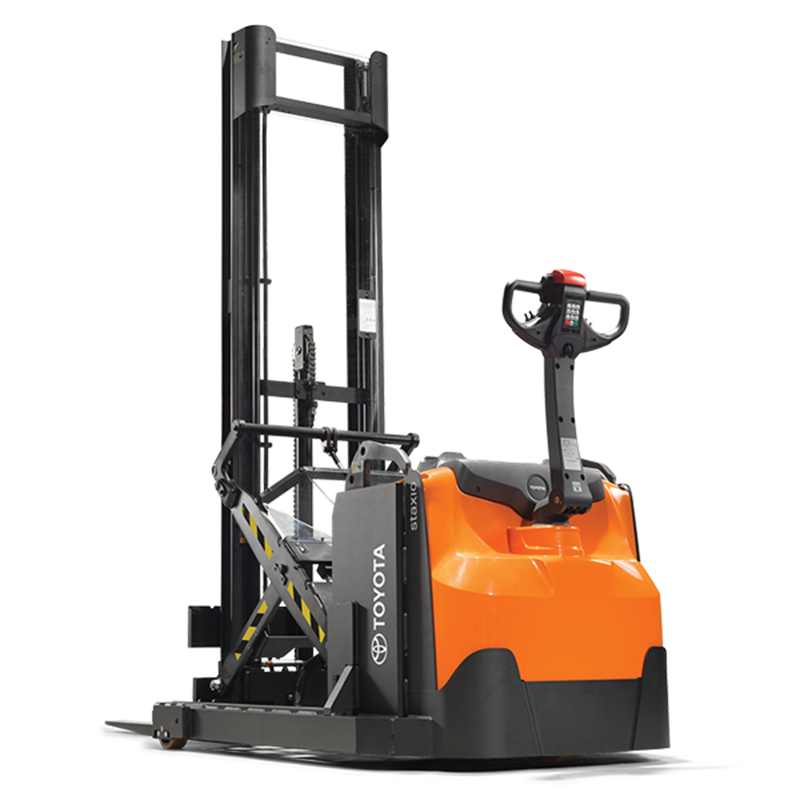

Toyota Staxio SWE120XR Walkie Reach Stacker Forklift

  • img 1,200 kg
  • img 5,400 mm
  • img 2,528 mm

at a glance

  • img Up to 1,200 capacity
  • img Indoor use
  • img Comfortable all day use
  • img Concrete, Bitumen, Paved, Tiled
  • LIFTS 1,200 KG
  • UP TO 5,400 mm
  • AISLE WIDTH 2,528 mm

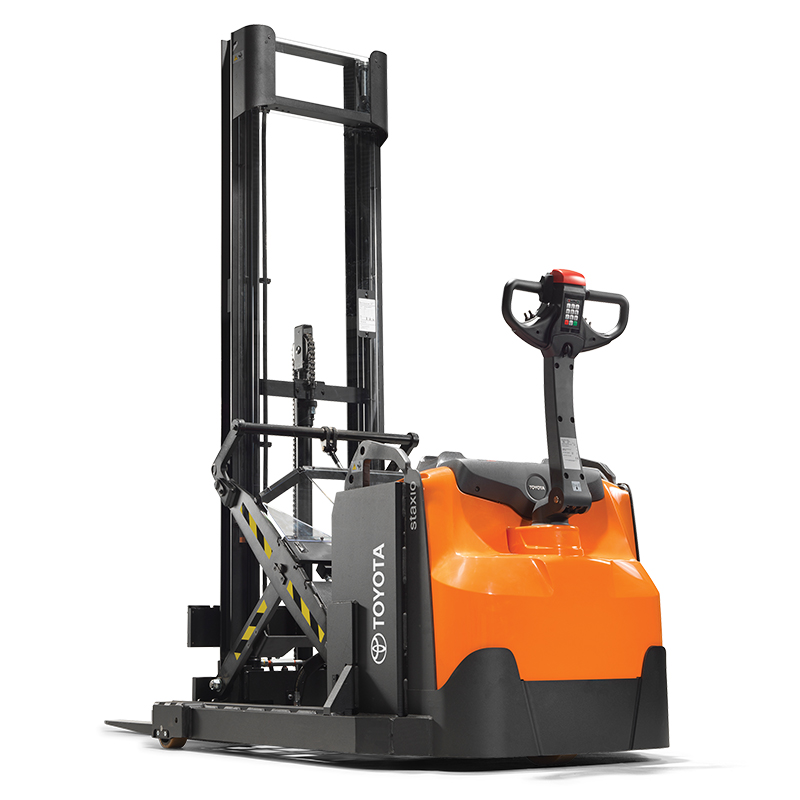

SWE120XR Walkie Stacker

  • The Toyota SWE120XR walkie reach stacker with retractable mast combines the compact size of a walkie stacker with the flexibility of a reach truck.
  • Equipped with retractable masts and the ability to handle different types of pallets, these powered walkie stacker trucks are designed to save space and increase efficiency.
  • Featuring a tight turning radius, power steering as standard and retractable mast, the SWE120XR walkie reach stacker is a flexible space-saving solution that is ideal for use in narrow aisles and cold storage applications.
  • (Overseas model shown in video. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).
    • Toyota's Optimised Truck Performance (OTP) technology controls acceleration, braking and steering depending on speed.
    • Click-2-Creep function enables the driver to operate the walkie stacker with the arm in an upright position at very low speeds, improving driveability in confined areas.
    • The mast tilt range of 1.2 degrees forwards and 1.8 degrees backwards makes it easier to manoeuvre loads in narrow aisles and access loads in hard-to-reach racking.
    • The Sensi-lift function enables precise load handling and reduces the risk of goods being damaged. All driver controls are located on the tiller arm to enable smooth and accurate control.
    • The Toyota SWE120XR walkie reach stacker can handle a mix of pallet types up to 5.4 meters with a triplex mast, with the option of fitting a sideshift or fork positioner.
    • 180-degree power steering
    • Permanently mounted AC drive motor
    • Mast position sensor
    • Controlled reach speeds
    • Secure PIN code access
    • Soft start/stop function
    • Toyota's I_Site forklift fleet management and monitoring system is also optionally available
    • Standard safety features include emergency stop switch, tiller arm safety button, slope control, access control and automatic switch off.
    • Like all Toyota forklifts, the Toyota Staxio range of walkie stackers is built according to the famous Toyota Production System, assuring the highest levels of quality, durability and reliability.

great for these industries

  • img Transport / Freight / Distribution
  • img Manufacturing / Construction / Maintenance
  • img Home Improvement / Hardware
  • img Grocery / Markets / Grocery Distributuion
  • img Medical / Pharmaceutical
  • img Forestry Products / Timber / Mining
  • img General / Refrigerated Warehouse
  • img Computer / Electronics
  • img Packaging
  • img Third Party Logistics
  • img Paper / Publishing
  • img Landscaping / Nursery
  • img Retail / Department Stores
  • img Furniture
  • img Aviation

BACKED BY THE toyota advantage


    Every Toyota forklift is built with the same precision and famous advanced manufacturing technologies as Toyota’s automotive products. But we don’t just say it, we’ve demonstrated it for over 50 years. That’s why when you choose to partner with Toyota Material Handling Australia, you’re choosing our legendary quality, durability and reliability.


    Safety is as much a part of our business as it is yours. That’s why we pioneered the System Of Active Stability™ (SAS™) over 20 years ago. Over 3,000 calculations per second delivering class leading stability, safety and assisting accident prevention. We may have pioneered SAS™ over 20 years ago – but we never sit still when it comes to safety.


    450+ service support staff. 300+ mobile service vans. 18 locations. Parts and service when and where you need them. In a country as large as ours – you need a service network as big as ours. That’s why when you choose to partner with Toyota Material Handling, you get the ongoing support of Australia’s most dedicated service and parts network.


    We’re proud to offer an unparalleled range of complementary products suitable for Australian businesses. From elevated work platforms, sweepers and scrubbers, Taylor-Dunn electric vehicles, to services such as telematics and fleet management solutions, or when demand means you need to tap into Australia’s biggest forklift rental fleet.
