Walkie Stacker Forklifts

Toyota Staxio SWE120S Power Stacker Forklift

  • img 1,200 kg
  • img 4,755 mm
  • img 2,300 mm

at a glance

  • img Up tp 1,200kgs capacity
  • img Indoor use
  • img Comfortable all day use
  • img Concrete, Bitumen, Paved, Tiled
  • LIFTS 1,200 KG
  • UP TO 4,755 mm
  • AISLE WIDTH 2,300 mm

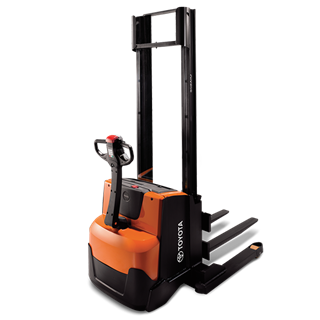

SWE120S Walkie Stacker

  • The Toyota Staxio SWE120S walkie stacker forklift is part of the Toyota Staxio series for walkie applications.
  • The SWE120S walkie stacker forklift has support arms that straddle loads, making it possible to handle closed pallets.
  • Toyota Staxio stackers are compact, easy-to-use and powered by a low-maintenance and efficient AC drive motor - part of Toyota Powerdrive.
  • (Overseas model shown in video. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).
    • Key features SWE120S walkie stacker forklift -
      • Chassis width - 770 mm.
      • Available with various battery compartments, up to 300 Ah
      • Simplex, Duplex Tele, Duplex Tele Panoramic view and Duplex Hi-Lo mast types with lifting heights from 1355 mm and up to 4755 mm
      • Toyota BT Powerdrive
    • An easy-to-use walkie stacker forklift means less risk of mistakes and less risk of damage or breakdown. Combine this with Toyota's built-in quality and the Toyota Staxio's advanced design and the result is more uptime, which means more work done for less cost.
    • On all Toyota Staxio walkie stacker forklift models the truck body profile lowers towards the forks, enhancing visibility. The tiller arm is designed so that the distance between operator and forklift is great enough to protect the operator's feet while still allowing him or her to be close enough to the machine to have an excellent view of the fork tips or load. These two features combine with clear-view masts to create the 'Toyota Totalview' concept, ensuring the operator has excellent visibility both at ground level and when positioning at height.
    • Acceleration, speed and braking characteristics are fully programmable to suit each individual driver needs. This is just an example of all the safety features the Toyota Staxio walkie stacker forklift is equipped with.
    • The Toyota Staxio SWE120S walkie stacker forklift has a lift capacity of 1200 kg. It is available with support arm widths: from 900 mm-1300 mm.
    • The 208° steering provides exceptional manoeuvrability and the Toyota Powerdrive system allows performance parameters to be adapted to each application and operator. This makes the SWE120S walkie stacker forklift perfectly suited for environments such as shops, warehouses and other stores where a variety of pallet types is in use.
    • A compact chassis, ergonomic positioning of the control arm and visibility all over the forks are just a few examples on how we make it easier for a operator to work with our walkie stacker forklifts. That's simplicity!

    Example of options available on the Toyota Staxio SWE120S walkie stacker forklift. A full list of options is available from your nearest Toyota Material Handling branch.

    • Low temperature oil for coldstore applications.
    • Built-in charger.
    • E-bar with brackets for several options such as writing table, shrinkwrap holder and PC.
    • Platform version.
