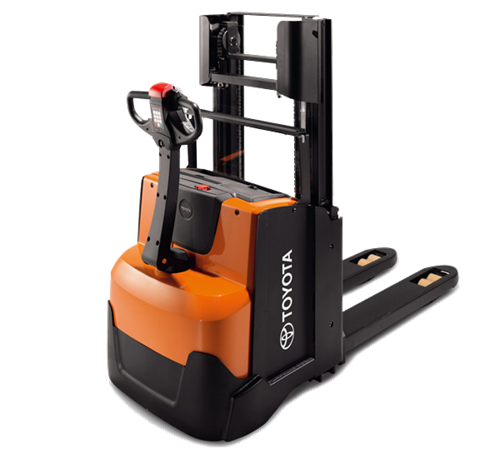

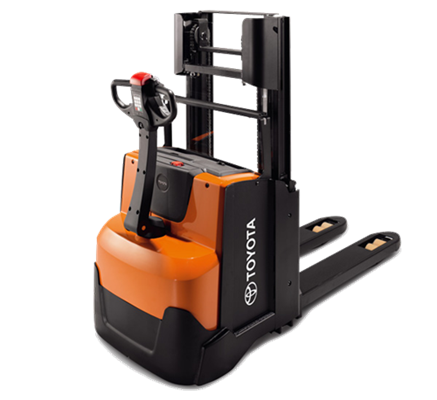

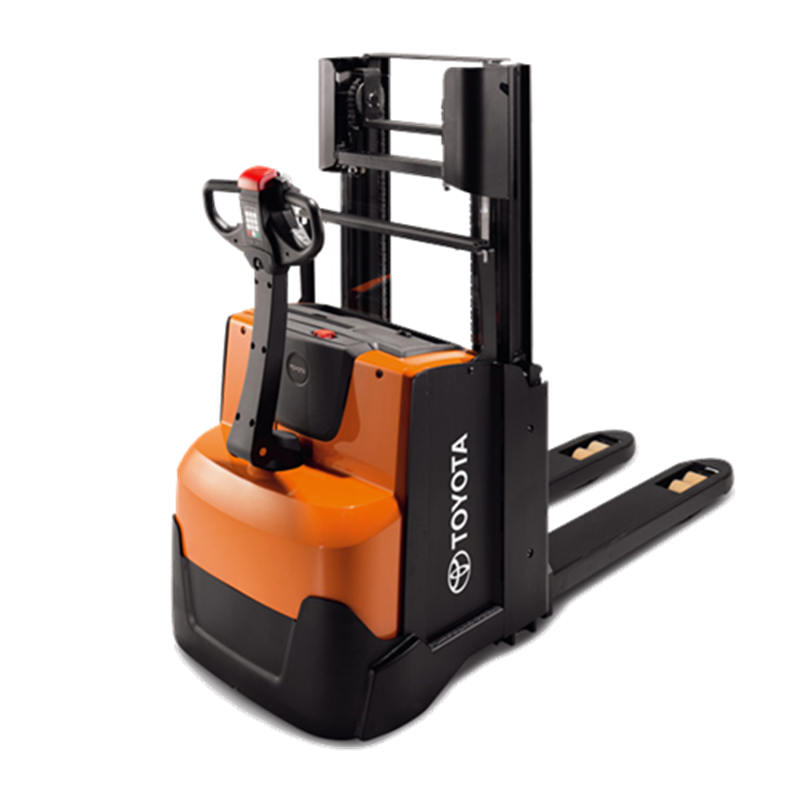

Toyota Staxio SWE200D Powered Walkie Stacker Forklift

2,000 kg
2,100 mm
2,620 mm

2000 kg
2100 mm
2620 mm

at a glance

Up to 2,000 capacity
Indoor use
Comfortable all day use
Concrete, Bitumen, Paved, Tiled

LIFTS 2,000 KG
UP TO 2,100 mm
AISLE WIDTH 2,620 mm

ENQUIRE

SWE200D Walkie Stacker

The Toyota Staxio SWE200D walkie stacker forklift is part of the Toyota Staxio series for walkie applications.

Toyota Staxio walkie stackers are compact, easy-to-use and powered by a low-maintenance and efficient AC drive motor. Thanks to its elevating support arms, this walkie stacker is suitable for use on uneven floors and ramps. It can also be used for horizontal transport.

Its design allows double-stacking, making it ideal for high-intensity loading and unloading operations.

(Overseas model shown in video. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

PRODUCTIVITY
- An easy-to-use walkie stacker forklift means less risk of mistakes and less risk of damage or breakdown. Combine this with Toyota's built-in quality and the Toyota Staxio's advanced forklift design and the result is more uptime, which means more work done for less cost.
- Key features SWE200D -
  - Chassis width - 770 mm
  - Available fork widths - 536 mm, 570 mm, 685 mm
  - Available fork lengths - 1000mm , 1150 mm
  - Available with various battery compartments, up to 300 Ah
  - Duplex Tele and Duplex Tele Panoramic view mast types with lifting heights from 1700 mm up to 2100 mm.
  - Toyota Powerdrive
  - Storage compartments
SAFETY
- On all Toyota Staxio forklift models the truck body profile lowers towards the forks, enhancing visibility. The tiller arm is designed so that the distance between operator and truck is great enough to protect the operator's feet while still allowing him or her to be close enough to the machine to have an excellent view of the fork tips or load. These two features combine with clear-view masts to create the 'Toyota Totalview' concept, ensuring the operator has excellent visibility both at ground level and when positioning at height.
- Acceleration, speed and braking characteristics are fully programmable to suit each individual driver needs. This is just an example of all the safety features the all-new Toyota Staxio is equipped with.
PERFORMANCE
- The forklift's small footprint, low overall height, and light weight make it very suitable for carrying onboard vehicles. The maximum lift height is 2100 mm.
- The Toyota SWE200D has a load capacity of 1200 kg on the forks. When use for double stacking it can handle 800 kg on the forks and 1200 kg on the support arms. It can also handle 2000 kg on the support arms for horizontal transportation.
- The forklift's small footprint, low overall height, and light weight make it very suitable for carrying onboard vehicles. The maximum lift height is 2100 mm.
COMFORT/ERGONOMICS
- A compact chassis, ergonomic positioning of the control arm and visibility all over the forks are just a few examples on how we make it easier for a operator to work with our pallet trucks. That's simplicity!
EASE OF USE
Example of options available on the Toyota Staxio SWE200D walkie stacker forklift. A full list of options is available from your nearest Toyota Material Handling branch.
- Load support.
- Low temperature oil for coldstore applications.
- Built-in charger.
- E-bar with brackets for several options such as writing table, shrinkwrap holder and PC.
- Platform version.
- Turtle function for creep speed.
- Sensi-lift, provides stepless lift/lower control for easy and accurate placement.
