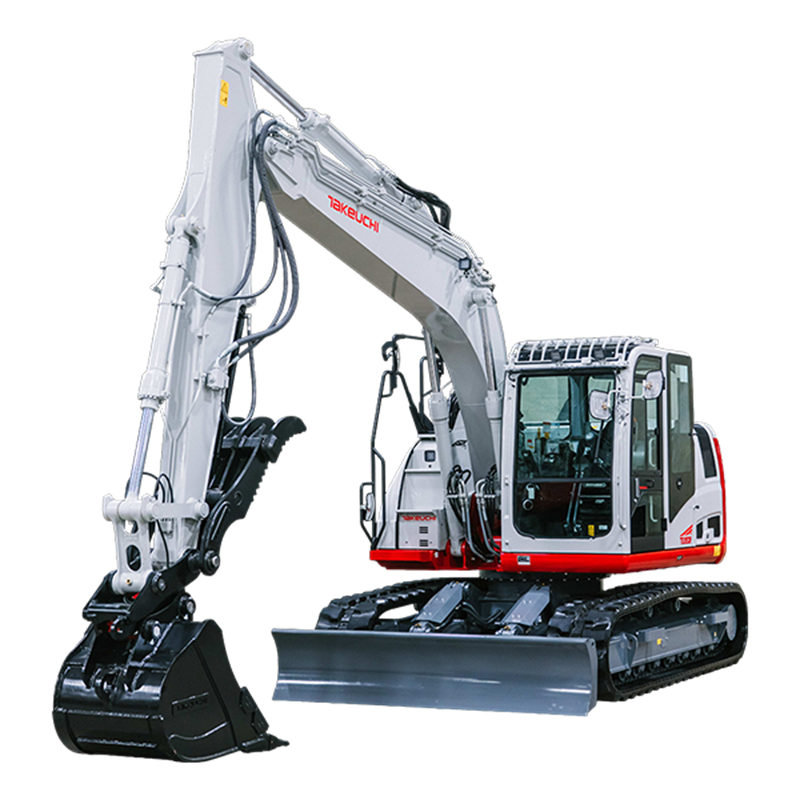

Takeuchi TB3150R Compact Excavator

Operating weight:
16,005kg
Engine:
Yanmar 4TN101FHT-2STB
Emission:
EU Stage V / EPA Tier 4 Emission Compliant
Engine power:
114 Hp/85kW
Bucket capacity:
0.45m³
Bucket breakout force:
96.3kN
Maximum dig depth:
6,030mm
Machine width:
2,530mm
ENQUIRE
Download product brochure

Product specifications may vary due to application, for more information contact your local Toyota Material Handling Australia branch.

Takeuchi TB3150R Excavator

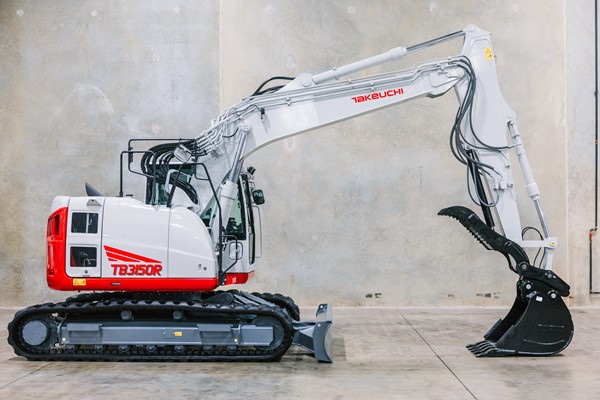

  • The TB3150R is the largest excavator in the Takeuchi line up, engineered to deliver powerful performance for demanding applications. Its robust fixed mono-boom design provides greater stability and allows operators to confidently handle heavier loads.
  • A redesigned operator’s station enhances comfort and control, featuring an intuitive 8-inch colour touch screen display, Bluetooth radio capability, easy-to-reach rocker switches, and responsive hydraulic joystick controls. Improved visibility and a refined cabin layout create a more comfortable and highly functional operating environment for operators.
  • (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

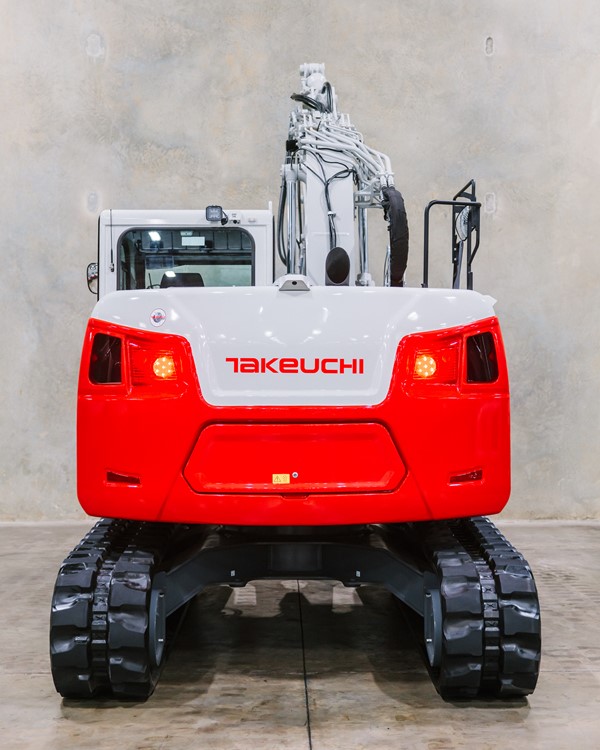

  • The TB3150R has a reduced tail swing design and a reinforced fixed boom configuration, minimizing rear overhang and allowing operators to work more confidently in confined areas or near structures.
  • Multiple Auxiliary Hydraulics – Simplify installation of hydraulic attachments improving productivity and limiting downtime.
  • 270 Degree Camera – Provides “bird’s view eye” from above the machine, making the TB3150R have absolute safety edge over the competition. An operator can choose a variety of image layouts to suit the working environment.

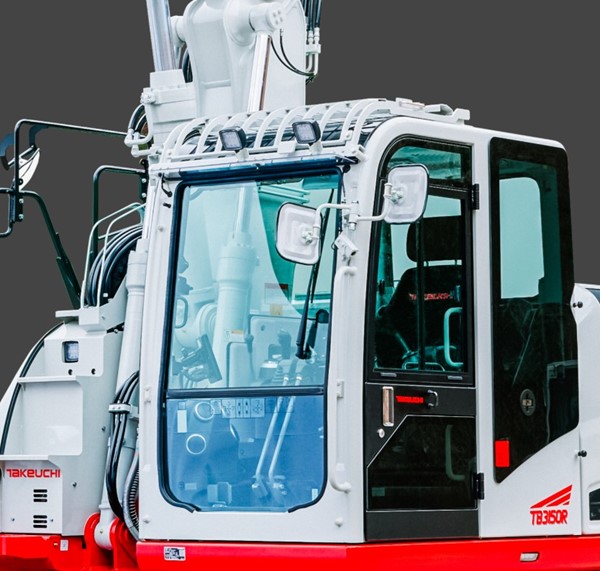

  • ROPS / OPG (Top Guard, Level Ⅱ) Cab – Provides the operator with greater peace of mind.
  • Heavy Duty Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
  • All Steel Construction – The engine hood, side covers and access panels are all steel for increased durability.
  • Standard Tiltable Roof Guard – Adds extra operator protection to the TB3150R, satisfying OPG Level Ⅱ. The openable structure makes cleaning much easier than a fixed roof guard.

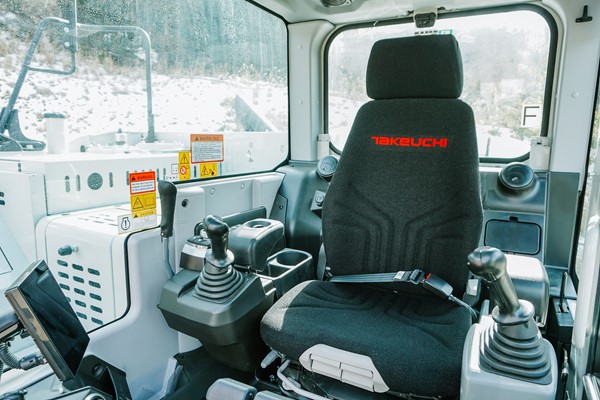

  • Automotive Styled Interior – Is completely redesigned over the previous model, TB2150R. Following the Takeuchi design principal of exceptional operator comfort, the cabin interior size is very spacious and provides unmatched comfort and visibility.

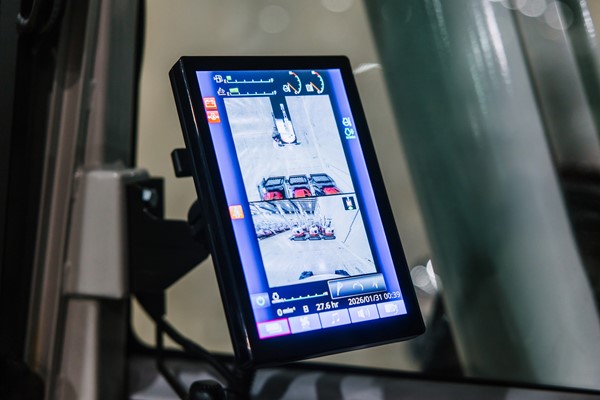

  • A full-colour, 8″ Touch Screen Display – Provides with a single glance all the information the operator needs to operate TB3150R. An intuitive interface ensures quick understanding and easy access to the variable functions, such like air conditioner, DAB radio and hydraulic flow adjustment.

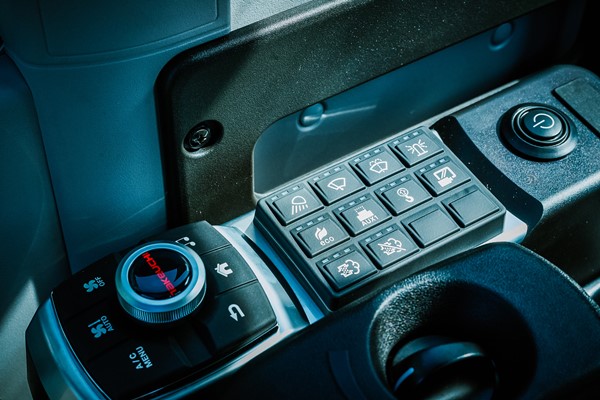

  • Intuitive Jog Dial and Multi-Switch Control Panel – providing easy access to common machine functions. All essential switches are conveniently placed on the right lever console, and their position adjusts simultaneously with the operator’s seat, ensuring comfortable operation even for long hours.

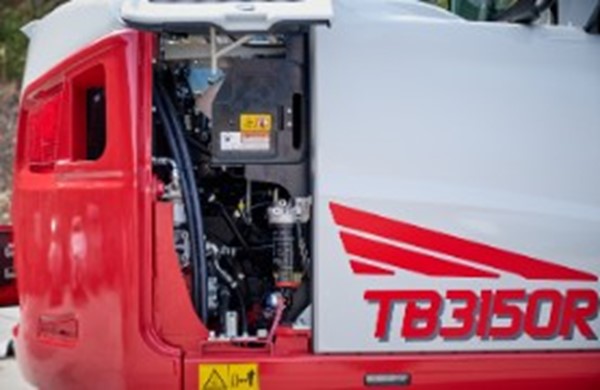

  • Wide Opening Covers – Offer convenient access to main components for outstanding serviceability.

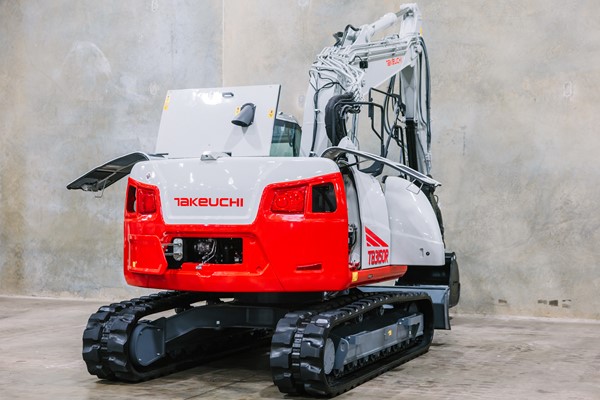

  • Rear Access Cover – Allows great access to the engine oil filter, dip stick of engine oil and starter motor.
  • Right Side Cover– Allows access to the fuel supply pump with reel system, fuel filter, water separator, fuel tank level gauge, and hydraulic oil tank level gauge.
  • Left Side Cover – Provides excellent access to the DEF tank, double element air cleaner and coolant reserve tank.
  • Maintenance Cover – Provides access to the radiator cap and engine oil fill.
ENQUIRE
Download product brochure

Product specifications may vary due to application, for more information contact your local Toyota Material Handling Australia branch.

great for these industries

Manufacturing / Construction / Maintenance
Forestry Products / Timber / Mining
Landscaping / Nursery
