Reach Forklifts

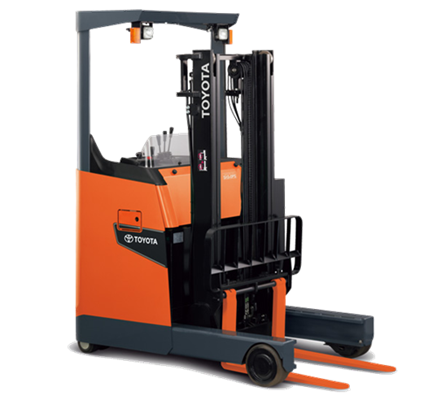

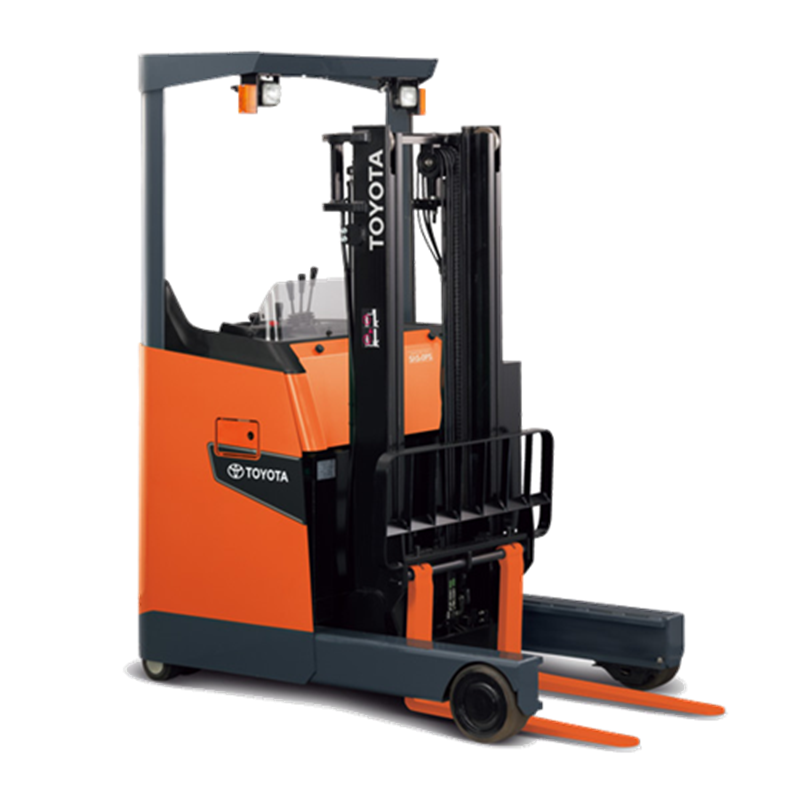

Toyota 1.0 - 3.0 Tonne 8-Series Stand Up Forklift

  • img 3,000 kg
  • img 7,000 mm
  • img 2,640 mm

at a glance

  • img 1,000kg - 3,000kg capacities
  • img Indoor use
  • img Ergonomic design for optimum performance
  • img Concrete
  • LIFTS 3,000 KG
  • UP TO 7,000 mm
  • AISLE WIDTH 2,640 mm

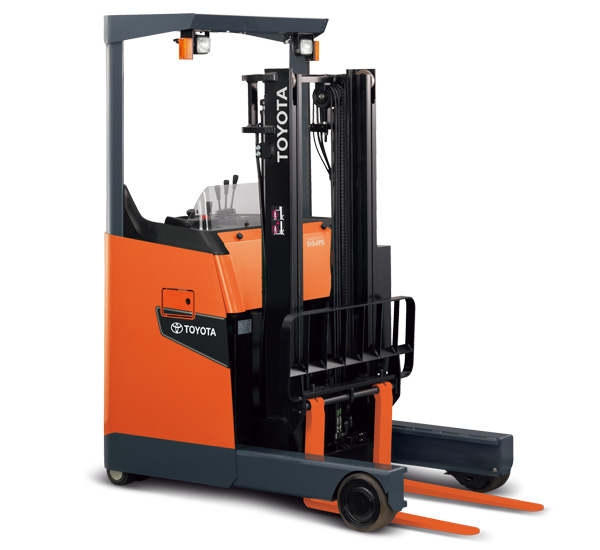

8FBR Reach Forklift

Toyota's 8-Series stand up 8FBR electric reach forklifts feature rugged construction, advanced technology and an ergonomic design for optimum performance and value. Improved Energy Efficiency / Longer Operating Time: 10% Longer than the previous model, Highly Efficient AC Motors and Hydraulic System. (Overseas model shown in video. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

    • Easy Down System (V, SV masts) provides less noise and impact as the forks contact the floor.
    • Heavy duty 9mm steel plating provides a durable chassis body
    • New highly efficient AC motors and motor drivers, regenerative braking that returns braking energy to the battery, and other design features achieve long operating time.
    • Outstanding Operability: Anti-rollback, Deluxe Multifunction Display (Includes: Load Weight Indicator, Digital Speed Meter, Power Select Function, Wheel Indicator, Travel Speed Settings and Over Speed Alarm), Low Floor height, Rear Positioned Headguard Pillar (for outstanding forward visibility), Panoramic Mirror.

    • Factory options: I_Site, Blue Light

    • The 8FBR reach forklift truck has Stable Suspension Control, a similar system to the SAS (System of Active Stability ) used on the 8FG/FD and 8FB Series. It offers higher levels of stability when the reach forklift truck is turning or when handling loads extended on its reach legs.
    • A Front Assist Brake System is equipped to provide computer controlled load wheel brakes, to reduce stopping distance and rear end swaying during braking. This new system provides high levels of brake performance when carrying heavy loads and when on slippery surfaces.
    • Traction Control System helps to eliminate drive wheel spinning when starting, providing smooth, spin free starts on almost any surface, resulting in longer tyre life.
    • Deadman type brake foot pedal
    • Emergency unplug lever
    • Safety & Stability: SAS-R (Front Assist Brake System, Traction Control, Suspension Control, Automatic Turn-speed Control), Operator Presence Sensing system allows for safer driver operation.

    • The compact and powerful AC drive motor provides smooth starts without jerky accelerator operation. Since the AC motor has no bushes or contactors, it has minimal maintenance, saving you time and money.
    • Power Select Function allows customisation of load and travel modes, to match reach truck performance to the operating conditions.
    • The Power Keep Function allows the 8FBR to maintain its "just charged" performance longer.
    • AC Power provides 3 Types of Regenerative Systems for longer battery life (accelerator, switch back, and braking).
    • Integrated Electronic Power Steering (EPS).
    • Full range of masts sizes in 2 and 3 stage configurations.
    • LED Lights for increased durability.

    • Low floor height.
    • Multifunction Control Lever (optional).
    • Waste support and Arm pad.
    • Wide Floor Space.
    • Small Diameter steering wheel with ergonomic angle.
    • Digital Multifunction Display (all-round type).
    • Power Battery carriage provides for quick battery changes.
    • No motor brushes or contactors on the AC Power provides for significant reductions in parts and labour costs.
    • Built in diagnostic functions for pinpoint trouble shooting.
    • Special models available including Cold storage, Rust proof, and Dust proof models (all optional).
    • The motors and motor drivers are used to control the charging current according to the battery condition (voltage, fluid temperature, and deterioration state). This lessens battery damage and contributes less battery fluid reduction.

great for these industries

  • img Transport / Freight / Distribution
  • img Manufacturing / Construction / Maintenance
  • img Home Improvement / Hardware
  • img Grocery / Markets / Grocery Distributuion
  • img Medical / Pharmaceutical
  • img General / Refrigerated Warehouse
  • img Computer / Electronics
  • img Packaging
  • img Third Party Logistics
  • img Paper / Publishing
  • img Landscaping / Nursery
  • img Retail / Department Stores
  • img Furniture
  • img Aviation

BACKED BY THE toyota advantage


    Every forklift we sell is built with the same precision and famous advanced manufacturing technologies as Toyota’s automotive products. But we don’t just say it, we’ve demonstrated it for over 50 years. That’s why when you choose to partner with Toyota Material Handling Australia, you’re choosing our legendary quality, durability and reliability.


    Safety is as much a part of our business as it is yours. That’s why we pioneered the System Of Active Stability™ (SAS™) over 20 years ago. Over 3,000 calculations per second delivering class leading stability, safety and assisting accident prevention. We may have pioneered SAS™ over 20 years ago – but we never sit still when it comes to safety.


    450+ service support staff. 300+ mobile service vans. 18 locations. Parts and service when and where you need them. In a country as large as ours – you need a service network as big as ours. That’s why when you choose to partner with Toyota Material Handling, you get the ongoing support of Australia’s most dedicated service and parts network.


    We’re proud to offer an unparalleled range of complementary products suitable for Australian businesses. From elevated work platforms, sweepers and scrubbers, Taylor-Dunn electric vehicles, to services such as telematics and fleet management solutions, or when demand means you need to tap into Australia’s biggest forklift rental fleet.
