Takeuchi Excavators

Takeuchi TB210R Compact Excavator

Operating weight:
1,150kg
Engine:
Kubota/D722-E4B
Emission:
EU Stage V/EPA Tier 4 Emission Compliant
Engine power:
12Hp/8.86kW
Bucket capacity:
0.022m³
Arm breakout force:
6.4kN
Bucket breakout force:
11.2kN
Maximum dig depth:
1,755mm
Machine width:
1,020/750
ENQUIRE

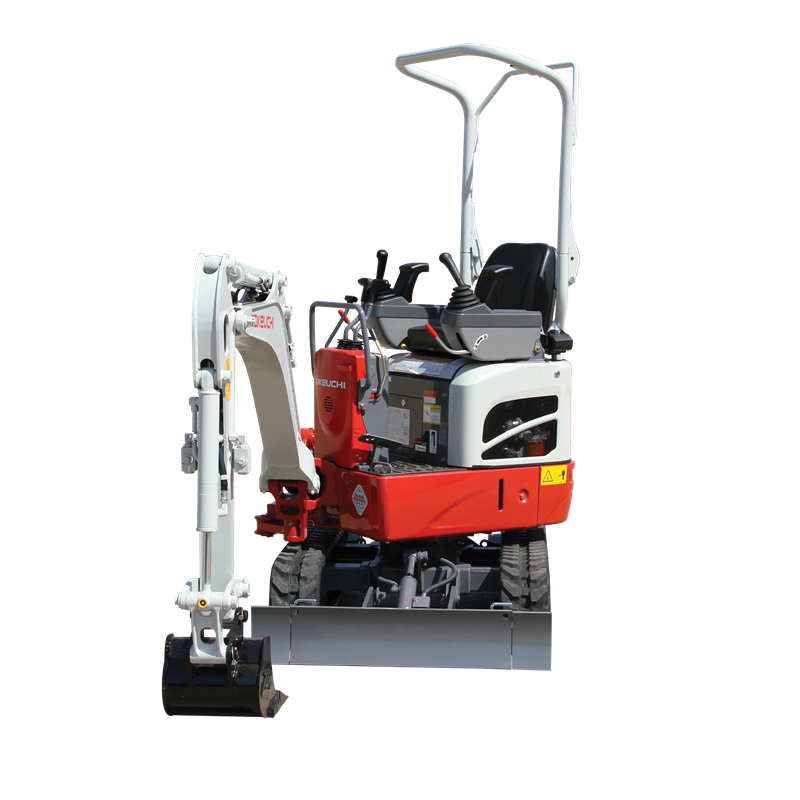

Takeuchi TB210R Compact Excavator

  • The TB210R delivers excellent performance and provides an impressive feature set in a very compact design. It features a retractable undercarriage, foldable ROPS, and short tail swing enabling the TB210R to work in the most confined applications.
  • (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).
  • Retractable Undercarriage – allows this machine to travel through standard doorways and areas with limited access with ease.
  • Powerful Traction Force – for excellent turning and travel performance in varying conditions.

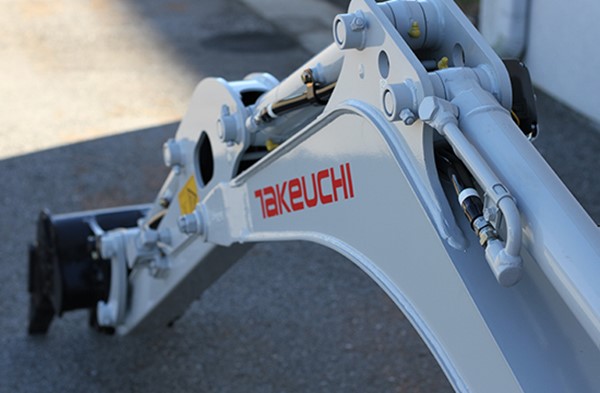

  • Boom Arm – provides greater working range and features two-way auxiliary hydraulics with shut-off valves.
  • Improved Two Speed - convenient push button on the right travel lever to shift from low to high speed.
  • Minimal tail swing allows the operator to work in confined applications without concern of rear swing impacts.

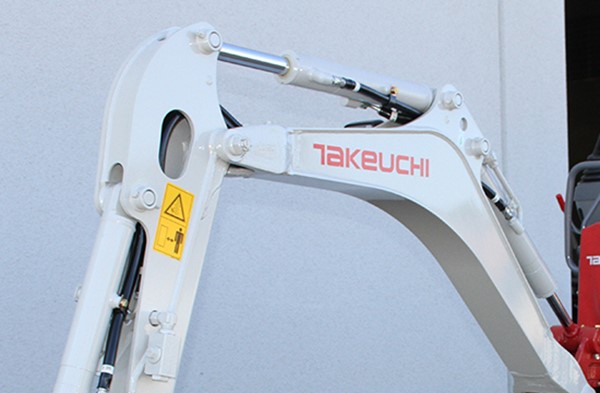

  • Top Mount Boom Cylinder – helps protect the boom cylinder from damage from the bucket and debris.
  • Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
  • Double Flange Track Rollers – provide greater contact between the roller and rail for improved track retention.
  • Protected Hydraulic Plumbing – all hoses for working equipment are routed through the boom and arm for an extra level of protection, and greater visibility of the work equipment.

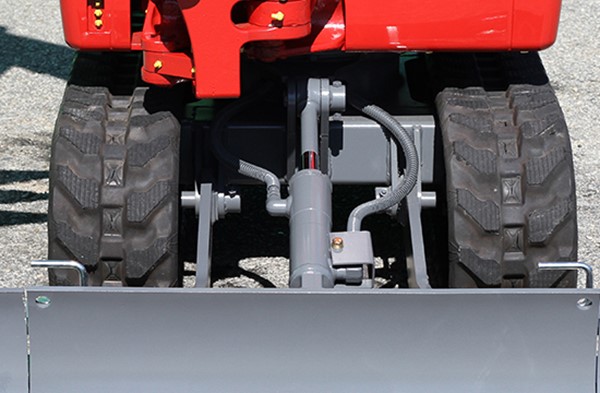

  • Spiral Wrapped Lines – protect the blade cylinder hydraulic lines from damage due to rocks and debris.
  • All Steel Construction – Protects components and ensures long term durability.

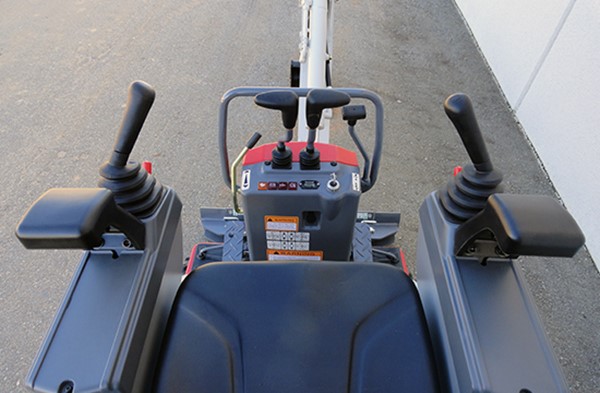

  • Pilot Operated Joystick Controls – deliver precise responsive controls and are low effort reducing fatigue.
  • Optional Pattern Change Valve – will allow the operator to choose their preferred operational pattern for greater efficiency and safety.
  • Arm Rests – fully support the operator’s arm for improved comfort.

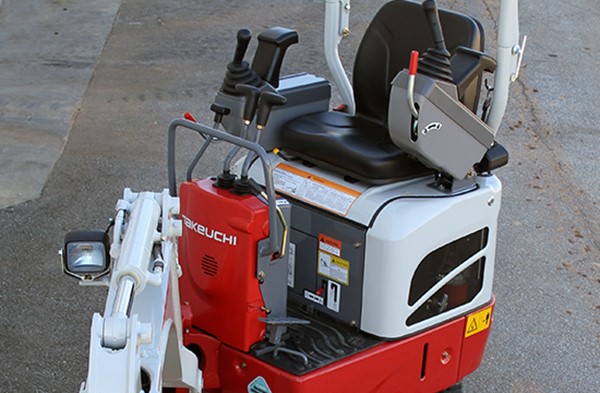

  • Dual Entry Points – make it easier for the operator to enter or exit the machine from either side.
  • Operator’s Station – Delivers excellent visibility and operator comfort while providing easy entry and exit.
  • Convenient Handle – makes it easy to enter and exit the machine from both the right and left side.





  • Excellent Serviceability – allows all key service and maintenance points to be inspected quickly and easily.

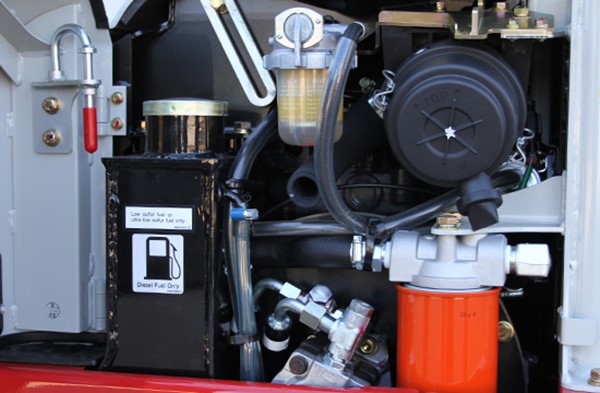

  • Side Access Panel – houses dual element air cleaner, fuel filter with shut-off, hydraulic filter, and fuel tank with sight gauge.

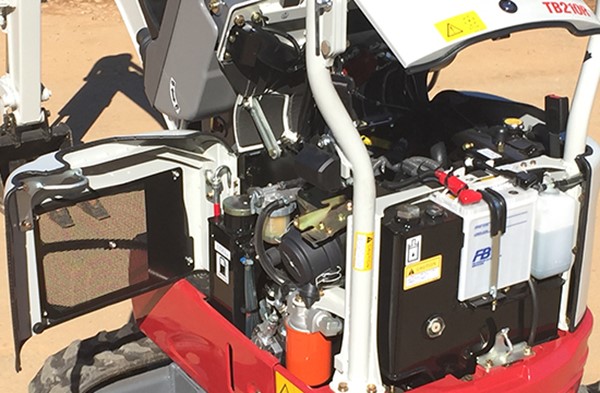

  • Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.
  • Front Compartment – provides outstanding access to the alternator, engine oil filter and engine oil dipstick.
  • Selector Valve – located under the operator’s seat allows operator to quickly choose one way or two auxiliary hydraulic flow.
  • Lockable Fuel Fill – is convenient and secure. A remote gauge is also provided for assistance when refuelling. The system also uses a self-bleeding system to provide easier restarts if the machine is run out of fuel.
