Takeuchi TL11R3 Track Loader

Operating weight:

5,435 kg

Engine:

Kubota / V3800-TIE5B

Emission:

EU Stage V/EPA Tier 4 Emission Compliant

Engine power:

106 Hp/78.8 kW

Rated Operating Load:

1,240 kg (ISO 14397-1) @ 35%*

Arm breakout force:

31.7kN

Bucket breakout force:

35.4kN

Machine width:

1830mm

ENQUIRE

Download product brochure

Product specifications may vary due to application, for more information contact your local Toyota Material Handling Australia branch.

Takeuchi TL11R3 Track Loader

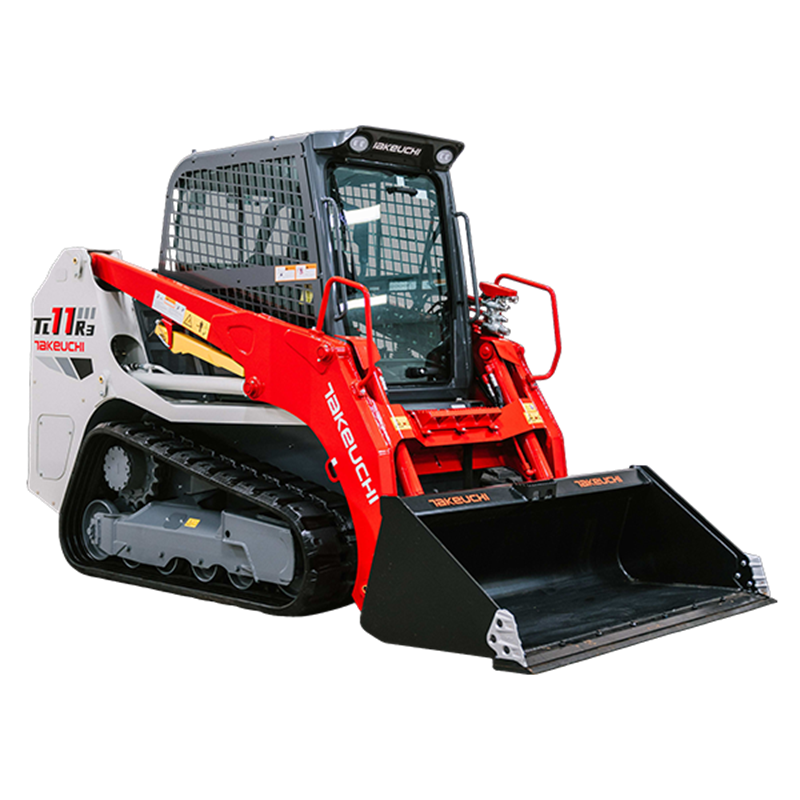

The TL11R3 Compact Track Loader has an operating weight of 5,435 kg and a 78.8 kW engine, making it a versatile and well-balanced machine that excels in a wide range of applications.

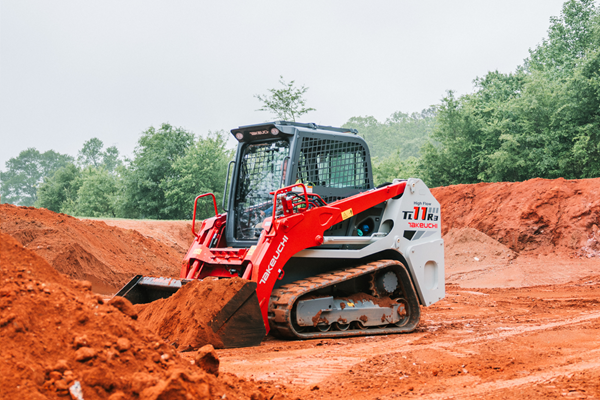

Its radial lift arm design is engineered to deliver superior breakout forces, making the TL11R3 particularly well suited for grading and dirt work. The TL11R3’s operator station features an intuitive 8-inch touchscreen multi-information display that integrates Bluetooth radio and air conditioning controls within the screen.

It also includes a standard rearview camera, electric-over-hydraulic (EH) joystick controls, an adjustable suspension seat, and a large cup holder—all designed to keep operators informed, comfortable, and less fatigued.

(Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

Radial Lift Arm – Is designed to deliver excellent mid-height reach and unmatched performance in the toughest applications.
EH controls – Ensure smooth operation for both travel and arm functions while enabling a range of new features that optimize productivity.
Active Power Control – Maintains engine power for optimal performance, and it can be engaged or disengaged by the operator.
Stay in Your Seat – Hydraulic flow is adjusted from the comfort of the operator’s seat, and attachment settings can be stored in the new monitor. Multiple work modes allow you to choose the mode suited to your application.
Multiple Working Modes – Standard mode delivers maximum power and performance, and ECO mode reduces fuel consumption and is ideal for less demanding applications.
Unparalled Tractive Force – Provides tremendous track power, allowing the machine to perform in the most demanding applications.

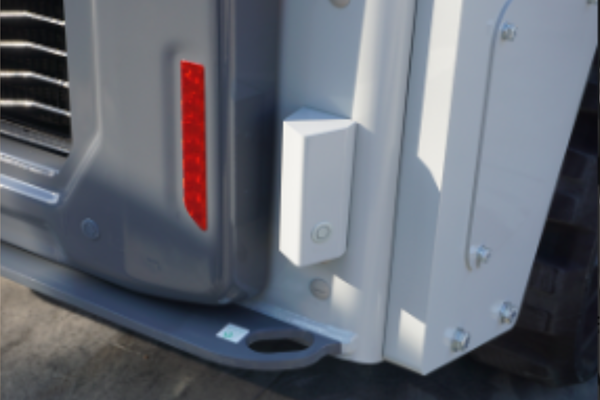

Rear Bumper with Tie Downs – Delivers greater protection to the rear of the machine and simplifies anchoring the machine for transport.
Heavy Duty Arm Cylinders – Are over built for greater durability and deliver exceptional lifting performance.

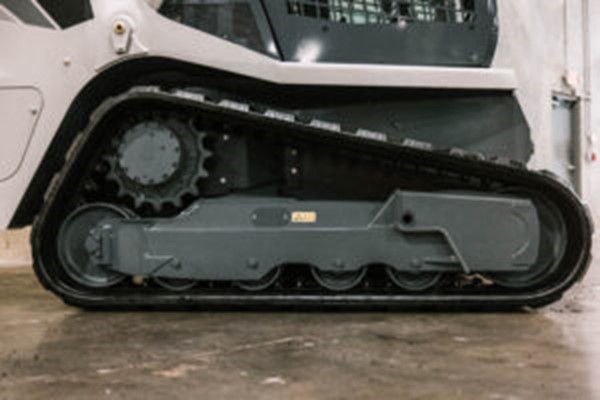

Track Loader Frames – Are purpose built and feature integrated cross members and thick steel reinforcements to ensure product longevity.
Heavy Duty Cross Member – Protects bucket cylinders from damage and it has been lowered for improved attachment visibility.

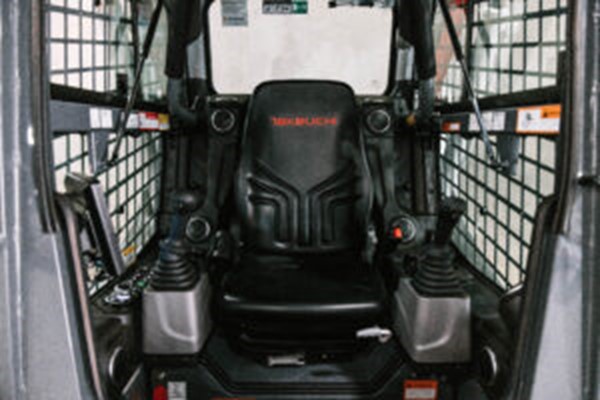

Completely Redesigned Interior – Boasts a spacious operator’s compartment and enhanced functionalities.

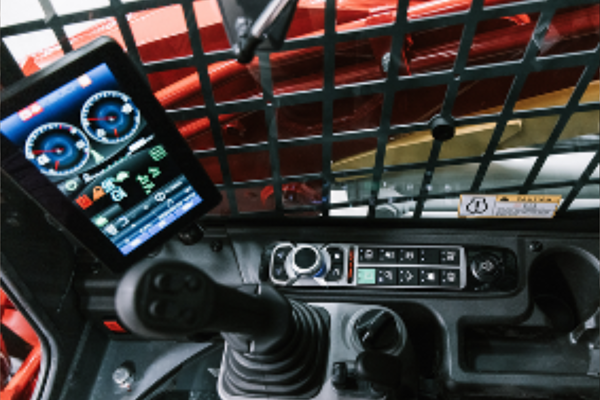

A full-colour, 8″ touch screen display and an intuitive jog dial/multi-switch control panel provide operators with all necessary information at a single glance, along with easy access to machine functionalities.
Takeuchi Access Management System – Our keyless start system ensures that only authorized personnel can operate machines, utilising registered passcodes and/or RFID keys.
Creep Mode -Enables operators to operate attachments with full hydraulic power while travelling at a precisely adjusted speed. Ideal for applications requiring a constant low travel speed and high hydraulic power, such as cold planer or trencher attachments.
Electric Performance Package (Optional) – Features three inertial sensors installed in the bucket, arm and body, enabling advanced functionalities such as Return-to-Set-Position, Self Level UP&DOWN and Arm Height Limit.
270 Degree View Camera (Optional) – Provides “bird’s view eye” from above the machine, making the TL11R3 have absolute safety edge over the competition.

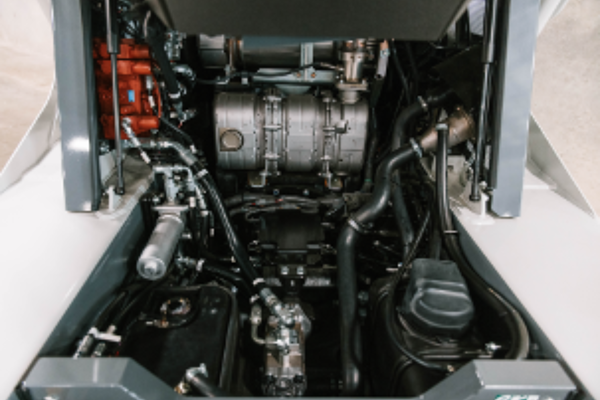

Open Up – With a tilt back operator’s station, routine maintenance and cleaning is easy to perform.

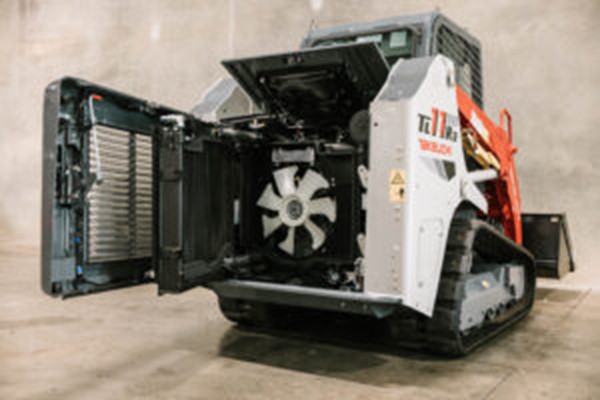

Keep it Cool – The high capacity, side by side radiator and hydraulic oil cooler not only provide excellent cooling capacity, the entire module swings out for easy cleaning and inspection.
Simplified Battery Access – Is now available through a bolt-on panel located on the right tower.
Fuel and DEF Fluid Fill – Features an audible alarm that alerts the operator when the fluid level is nearing the fill point reducing spills and clean-up.

great for these industries

Manufacturing / Construction / Maintenance

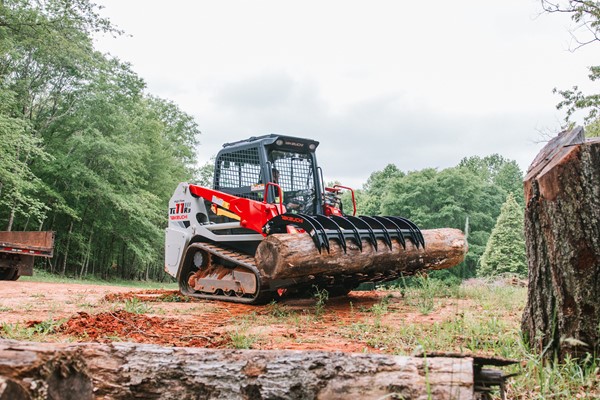

Forestry Products / Timber / Mining

Landscaping / Nursery
